מִפרָט
# | פריט | פָּרָמֶטֶר | הֶעָרָה | ||
1 | קיבולת נומינלית | 90 אה | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3.2 וולט | |||
3 | AC Impedance Resistance(1KHz) | ≤0.5mΩ | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | טמפרטורת טעינה | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | טמפרטורת פריקה | -20°C~55°C | |||
9 | טמפרטורת אחסון | Short Term ( Within 1 month) | -20 ° C ~ 45 ° C |
N.A | |
Long Term ( Within 1 year) | 0 ° C ~ 35 ° C. | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
מֵמַד | רוֹחַב | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36.7 ± 0.5 מ"מ | |||
14 | High( Total) | 200.5 ± 0.5 מ"מ | |||
15 | High( Subject) | 195.5 ± 0.5 מ"מ | |||
16 | Tabs Distance | 67.0 ± 1.0 מ"מ | |||
17 | משקל סוללה | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
יישום
המפעל שלנו
אריזה ומשלוח

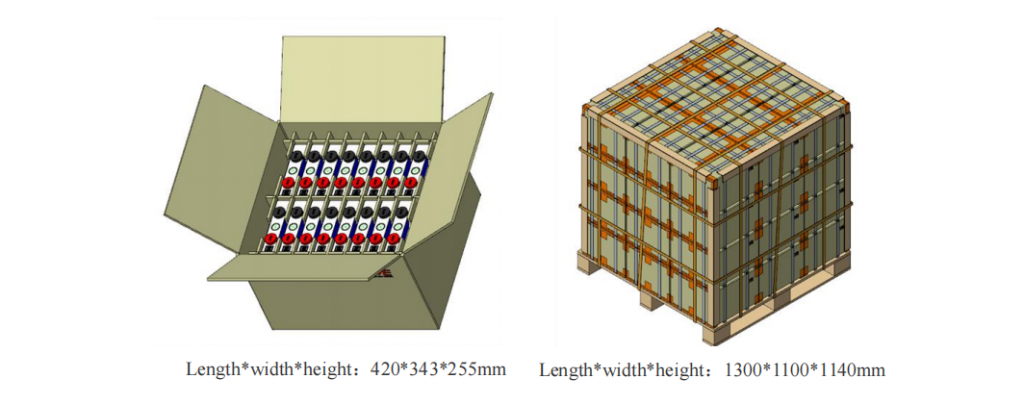

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
אִחסוּן
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
שאלות נפוצות
Q1. האם אוכל לקבל הזמנה לדוגמא?
ת. כן, אנו מקדמים בברכה סדר לדוגמא לבדיקה ובדיקת איכות.
Q2. מה עם זמן ההובלה?
A. מדגם צריך 3 ימים, זמן ייצור המוני צריך 5-7 שבועות, זה תלוי בכמות הזמנה.
רבעון שלישי. האם יש לך מגבלת MOQ?
ת. כן, יש לנו MOQ לייצור המוני, זה תלוי במספרי החלק השונים. 1 ~ 10 יחידות הזמנת מדגם זמינה. MOQ נמוך, 1 pc לבדיקת מדגם זמין.
רביעי. איך אתה שולח את הסחורה וכמה זמן לוקח להגיע?
ת. בדרך כלל לוקח 5-7 ימים להגיע. משלוח תעופה וים הוא גם לא חובה.
ש 5. איך להמשיך עם הזמנה?
ראשית, הודע לנו על הדרישות שלך או היישום שלך. שנית, אנו מצטטים על פי הדרישות שלך או ההצעות שלנו. באופן מוזר הלקוח מאשר את הדגימות ומניח פיקדון להזמנה רשמית. רביעית אנו מסדרים את ההפקה.
ש 6. האם זה בסדר להדפיס את הלוגו שלי על המוצר?
ת. כן. אנא הודע לנו רשמית לפני הייצור שלנו ואשר את העיצוב תחילה על בסיס המדגם שלנו.
Q7. איזה תעודות יש לך?
: יש לנו CE / FCC / ROHS / UN38.3 / MSDS ... וכו '.
ש 8. מה דעתך על אחריות?
ת: 3 שנות אחריות
